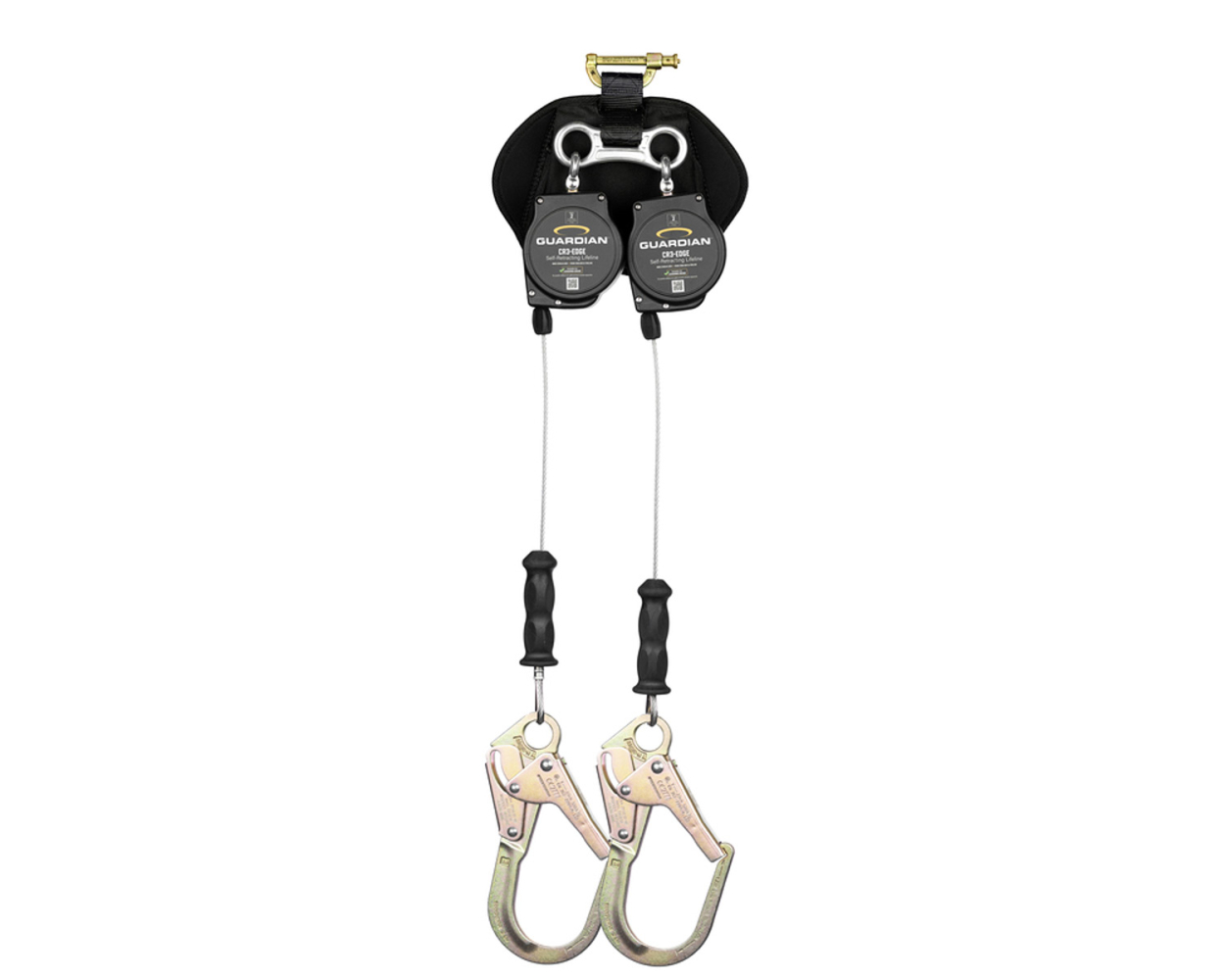

CR3-Edge Personal Self Retracting Lifeline
New: The CR3-Edge Personal SRL is part of Guardian's strongest ever line-up of SRLs. Built for strength and durability, this 8 ft Class 2 device can be used for numerous applications across the job site, especially where the lifeline could come into contact with the edge of a hazard after a fall. Packed full of useful features, the CR3-Edge SRL-P includes a QR code for instant access to product specifications and instructions, and a protective shock pack cover, with integrated fall clearance charts, that provides maximum comfort for the user.
Meets The new American National Standards Institute (ANSI) Self-Retracting Device (SRD) manufacturing standard Z359.14-2021 which came into effect on August 1st, 2023 for SRL-P Class 2 devices.
• 8ft lifeline
• Harness mounted twin-leg Personal SRL
• Glavanized Steel Lifeline for Class 2 Leading Edge applications
• Steel Rebar Hooks
• Dual lock SRL connector- Provides quick and easy installation onto most full body harnesses
• Protective shock pack cover - doubles as a comfortable back pad
• Lightweight thermoplastic housing - Durable construction for long-lasting use in the toughest conditions
• Dual leg units to promote 100% tie-off
• Integrated fall clearance charts: Fall Clearance charts integrated into shock pack cover for easy access to clearance charts anytime, anywhere
• Digitally enabled labels: QR code for quick and easy access to up-to-date safety and product information
• User weight range (including tools and equipment)|ANSI 130-310 lb|OSHA 100-310 lb (LE)|OSHA 100-420 LB (NON-LE)
• Max. Arresting Force|1,350 lb
• Ave. Arresting Force|1,150 lb
• Min. Setback Distance from edge |0" (LE)
• Max. Arresting Distance |9'6" (LE)(NON-LE) ANSI 130-310 lb, 3'|OSHA 100-310 lb, 3'|OSHA 311-420 lb, 3'6"
• Min. Required Fall Clearance | At or Above D-Ring (NON-LE) 100-310 lb, 6'6''| 311-420, 7'|Below D-Ring (LE) 100-310, 18'
• Max. Allowable Free Fall|5'
