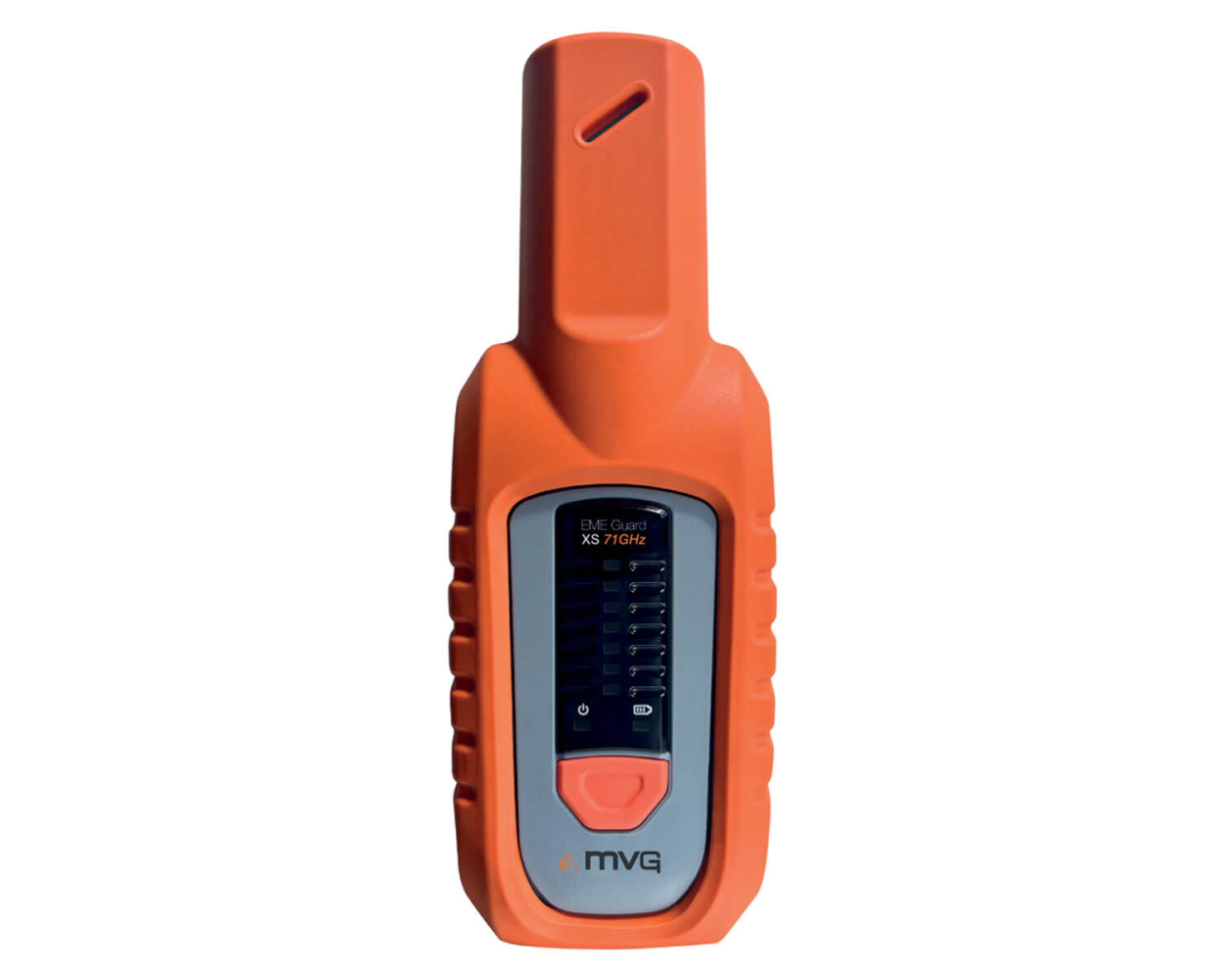

EME Guard XS 71 GHz RF Monitor
INCLUDES:
- EME Guard XS 71 GHz
- MVG Case
- Wrist strap
- Lanyard
- Connecting adapter
- Armband
- 2 x 1.5 V Size N Alkaline batteries
- Instructions for use
- Initial calibration (additional calibration and extended warranty available separately)
- Accurate measurement with tri-axis sensors
- Instant audio and visual alarm
- Robust, reliable and user-friendly
- Measurements from 1 MHz up to 71 GHz, covers 5G and 6G applications.
USER PROFILE:
- Persons working near antennas including installation and maintenance workers, broadcast, PMR
and mobile phone operators or regulatory body employees
MEASUREMENT CAPABILITIES:
- Continuous monitoring of Electromagnetic Field levels with isotropic tri-axis E-field sensors
- EMF Level indicated by a LED color scale
- Audio and visual alarms triggered when EMF exceeds the reference level
FREQUENCY BANDS
- 1 MHz – 71 GHz
SAFETY RECOMMENDATION:
- ICNIRP 2020
- FCC 96-326
- Safety Code 6 2015
- 2013/35/UE
TECHNICAL CHARACTERISTICS
- Probe: Isotropic 3-axis probe
- Frequency range: 1 MHz to 71 GHz
- Lower detection limit: 5 V/m
- Upper detection limit: 350 V/m
MEASUREMENT UNCERTAINTY:
-Frequency response:
0.001 - 1 GHz: +1 / +7 dB
1 - 1.6 GHz: -7 / +2 dB
1.6 - 7 GHz: -4.5 / +2.5 dB
7 - 19 GHz: -2.5 / +7 dB
19 - 40 GHz: 0 / +11 dB
40 - 50 GHz: -5/ +7 dB
50 - 60 GHz: -3 /+5 dB
60 - 71 GHz: -7 /+1 dB
-Axial isotropy
100 MHz : +/- 0.5 dB
2650 MHz : +/- 1 dB
5500 MHz : +/- 1 dB
ALARM & CONFIGURATION
-Visual alarm: 7 LEDs
-Audio alarm: 2 tones
-Low battery indicator: Orange flashing LED
MEASUREMENT CONFIGURATION
-Measurement period: 1 sec
CONDITIONS FOR USE
-Temperature, humidity: -10°C to 50°C, 85% max humidity
-Battery: 2 x 1.5 V Size N Alkaline removable batteries
-Battery life: > 1000 hours (> 50 days) if no alarm is triggered
MECHANICAL CHARACTERISTICS
-Dimensions: 132.5 x 48.5 x 28.7 mm (LxWxH) without connecting adapter
-Portable and durable
-Weight: 120 g with batteries
