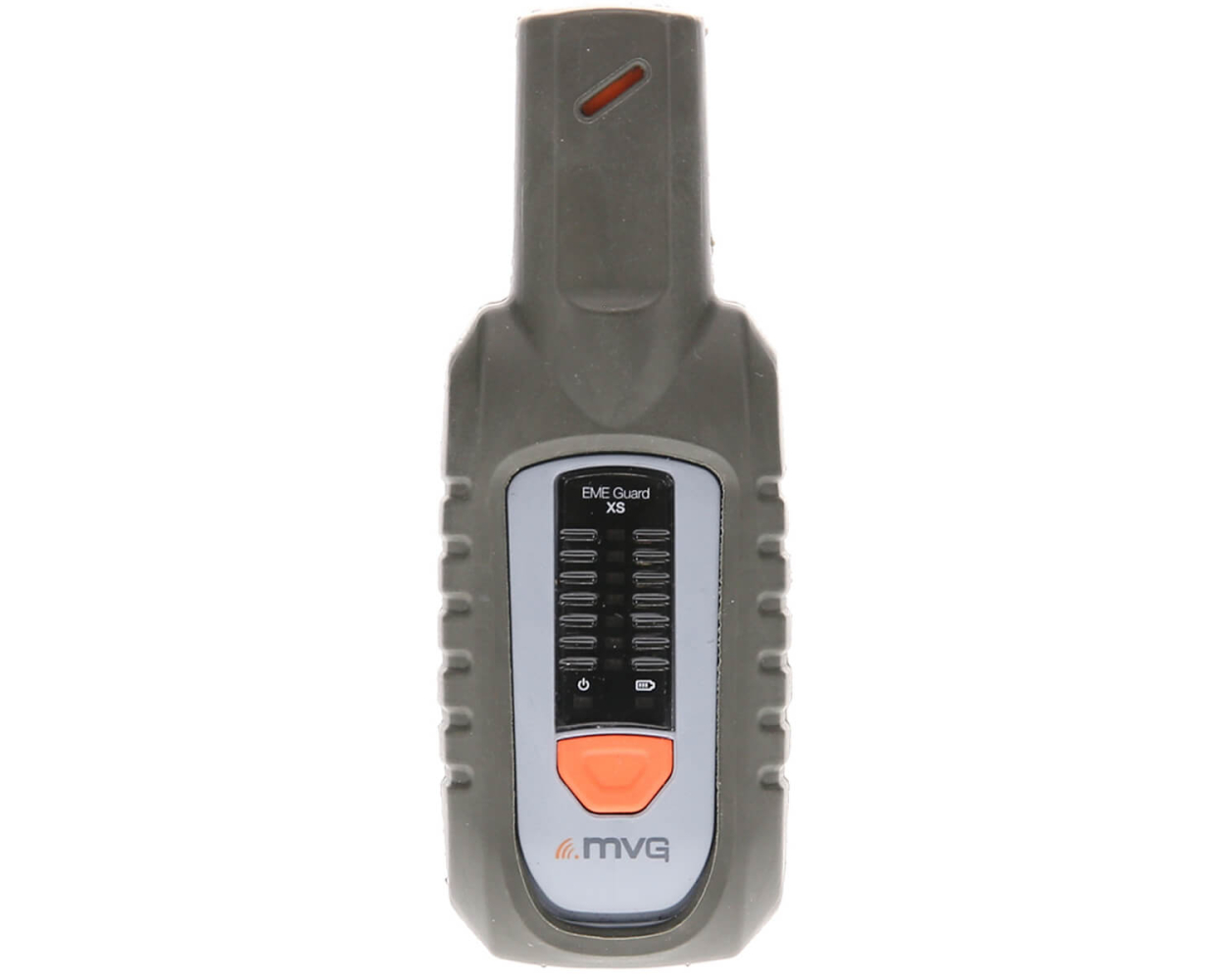

MVG™ EME Guard XS Radar RF Monitor

$799.00
SKU
MVGEMEGUARDXSRAD

EME Guard XS Radar

Occupational RF Safety

80.00 MHz – 30000.00 MHz

- An EMF measuring device specifically designed to alert workers operating near radar transmitters
- Continuously scans for short pulsed signals
- Alerts users whenever the acceptable limits have been exceeded via its built-in alarm and visual system
- Extremely easy to use and creates a safer working environment close to radar antennas.

USER PROFILE:
-Persons working near radar transmitters or antennas including installation and maintenance workers, broadcast, PMR and mobile phone operators or regulatory body employees
-Military and aviation personnel

MEASUREMENT CAPABILITIES
- Continuous monitoring of Electromagnetic Field levels with isotropic tri-axis E-field sensors
- EMF Level indicated by a LED color scale
- Audio and visual alarms triggered when EMF exceeds the reference level
- Short pulsed signal detection

FREQUENCY BANDS: 80 MHz – 30 GHz

SAFETY RECOMMENDATIONS:
- ICNIRP
- FCC 96-326
- Safety Code 6
- 2013/35/UE New EU Directive
- Alarm threshold can be adjusted at MVG factory upon request

EQUIPMENT INCLUDED:
- EME GUARD SX RADAR
- MVG Case
- Wrist Strap
- Lanyard
- Connecting Adapter
- ARM band
- 2 x 1.5 V Size N Alkaline Batteries
- Instructions for use

SERVICES INCLUDED:
- Initial Calibration

OPTIONAL SERVICES:
- Additional Calibration
- Extended Warranty

TECHNICAL CHARACTERISTICS
- Probe: Isotropic 3-axes probe
- Frequency range: 80 MHz - 30 GHz
- Lower detection limit: 5 V/m
- Upper detection limit: 350 V/m

MEASUREMENT UNCERTAINTY
- Frequency response:
80-700 MHz : -2/+4 dB
0.7-2.7 GHz : -1/5 dB
2.7-6 GHz : +2/+7 dB
6-16 GHz : +4/+13 dB
16-30 GHz : -8/+1 dB

Axial isotropy:
100 MHz : ± 0.5 dB
2.6 GHz : ± 0.7 dB
5.5 GHz : ± 0.9 dB

ALARM & CONFIGURATION:
- Reference threshold : Alarm threshold can be adjusted at MVG factory upon request
- Visual alarm: 7 LEDs
- Audio alarm: 2 tones (activated from 5 to 350 V/m)
- Low battery: indicator Orange flashing LED
- Alarms update period: 1 sec

MEASUREMENT CONFIGURATION
- Measurement period 20 ms

CONDITIONS FOR USE
- Temperature, humidity: 14°F to 122°F, 85% max humidity
- Battery: 2 x 1.2 V / 500 mAh Size N NiMH rechargeable batteries
- Battery life: Greater than 13 hours if no alarm is triggered

MECHANICAL CHARACTERISTICS
- Dimensions: 132.5 x 48.5 x 28.7 mm (LxWxH) without connecting adapter
- Weight: 4.25 oz with batteries

SEE IMAGES FOR ADDITIONAL SPECS AND INFO
